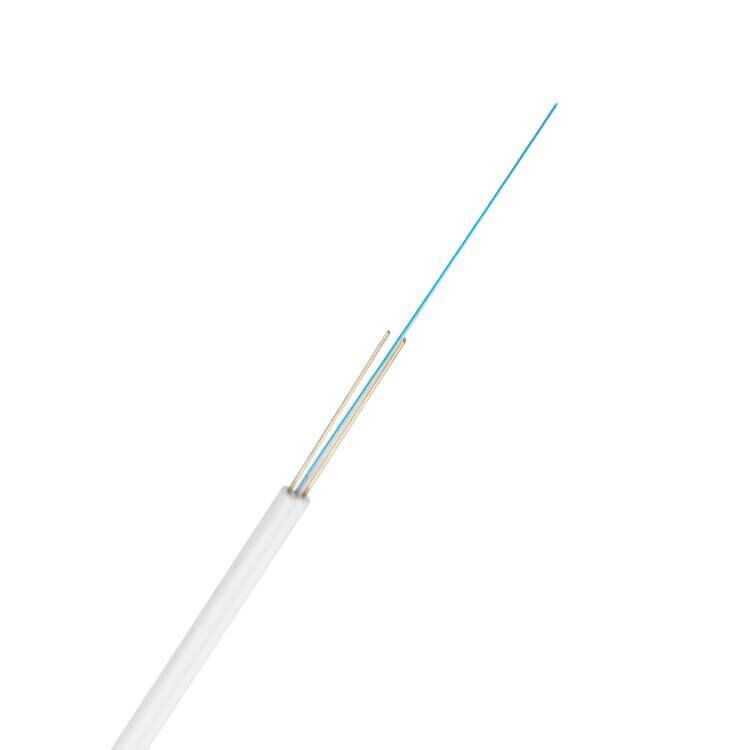

FTTH Fiber Cable 2 Core Bow Type with Steel Wire Distribution Drop Cable
This 2 core cable with 2 steel wire as strength member, provides excellent performance of crush and tensile strength. The cable is used as access cable, ftth drop cable in FTTH system.
Description
Hone 2 core ftth fiber cable GJXH is a butterfly drop cable with 2 wire mental reinforcement and low smoke halogen free flame retardant polyolefin sheath. It’s an indoor optical cable specially developed for FTTH (Fiber to the Home).
2 fiber core is in the center of the cable, and 2 mental strength member are placed on both sides. Outlayer is enveloped and sheathed with LSZH (low-smoke halogen-free) material to form a cable.
Application
FTTH
Features
- Small diameter, light weight and strong practicability
- Simple and reasonable structure, good compressive, tensile and aging resistance
- Groove 8 design makes the ftth cable easy to peel off the sheath, simplifying installation and maintenance
- Small bending radius and excellent flexibility meets various indoor wiring environments of FTTH
- Fiber core meets or better than ITU G.657 standard, highest cost performance
- LSZH sheah is ideal for indoor application and environment friendly
Optical Characteristics
| Optical Characteristics | G.657A1 | G.657A2 | OM3 | OM4 | ||
|---|---|---|---|---|---|---|
| Attenuation (+20℃) | 850/1300nm | Typical | -- | -- | 3.0/1.0 dB/km | 3.0/1.0 dB/km |
| Max. | -- | -- | 3.5/1.5 dB/km | 3.5/1.5 dB/km | ||
| 1310/1550nm | Typical | 0.36/0.22 dB/km | 0.36/0.22 dB/km | -- | -- | |
| Max. | 0.5/0.4 dB/km | 0.5/0.4 dB/km | -- | -- | ||
| OFL | 850/1300nm | -- | -- | ≥1500/500 MHZ.km | ≥3500/500 MHZ.km | |
| Bandwidth | 850nm | -- | -- | ≥2000 MHz·km | ≥4700 MHz·km | |
| 10G Ethernet Link Length (m) | 850nm | -- | -- | ≤300m | ≤550m | |
| Min. Bending Radius | 10mm | 7.5mm | 30mm | 30mm |
Technical Parameters
| Fiber Count | Cable Size (mm) | Cable Weight (Ref kg/km) | Tensile Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
|---|---|---|---|---|---|
| 1 | (2.0±0.1)x(3.0±0.1) | 8 | 40 / 80 | 500 / 1000 | 15 / 30 |
| 2 | (2.0±0.1)x(3.0±0.1) | 8.5 |
