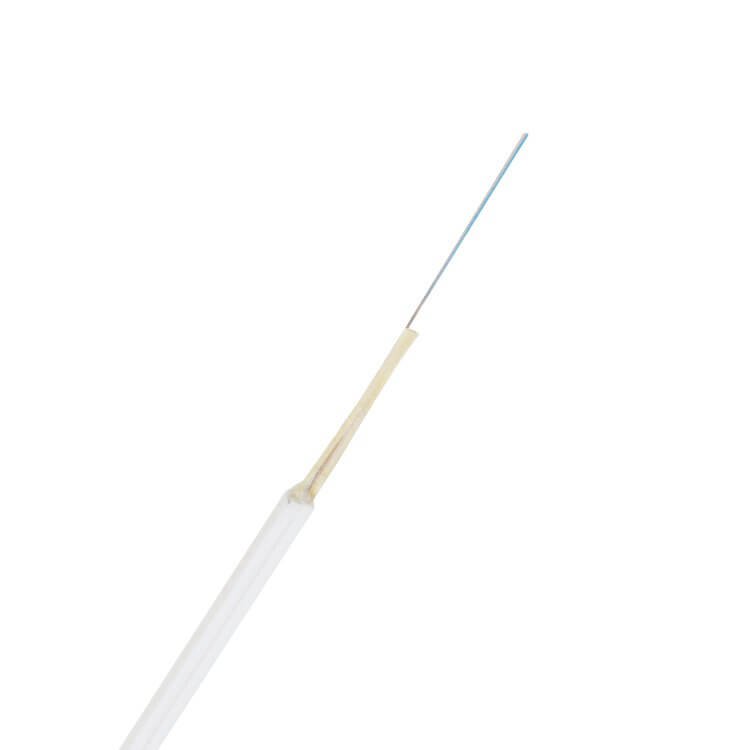

Drop Cable Bow Type Access Network Indoor Fibre Optic Cable
This drop cable is a LSZH sheath fibre cable for indoor wire and access network. The FRP strength member gives the cable good crush resistance and fibre protection performance.
Description
Hone ftth cable GJXFH is a butterfly drop cable with 2 parallel FRP fibre reinforcement plastic and LSZH low smoke halogen free flame retardant sheath. It’s an indoor optical cable specially developed for FTTH (Fibre to the Home) access network.
Fibre core is in the centre of the cable, and 2 FRP strength member are placed on both sides. Out layer is enveloped and sheathed with LSZH (low-smoke halogen-free) material to form a cable.
Application
FTTH drop cable
Features
- Small diameter, light weight and strong practicability
- FRP parallel strength member gives the cable good characteristics on crush resistance
- Groove 8 design makes the ftth cable easy to strip, simplifying installation and maintenance
- Small bending radius and excellent flexibility meets various indoor wiring environments of FTTH
- Fibre core meets or better than ITU G.657 standard, highest cost performance
- LSZH sheath is ideal for indoor application and environment friendly
Optical Characteristics
| Optical Characteristics | G.657A1 | G.657A2 | OM3 | OM4 | ||
|---|---|---|---|---|---|---|
| Attenuation (+20℃) | 850/1300nm | Typical | -- | -- | 3.0/1.0 dB/km | 3.0/1.0 dB/km |
| Max. | -- | -- | 3.5/1.5 dB/km | 3.5/1.5 dB/km | ||
| 1310/1550nm | Typical | 0.36/0.22 dB/km | 0.36/0.22 dB/km | -- | -- | |
| Max. | 0.5/0.4 dB/km | 0.5/0.4 dB/km | -- | -- | ||
| OFL | 850/1300nm | -- | -- | ≥1500/500 MHZ.km | ≥3500/500 MHZ.km | |
| Bandwidth | 850nm | -- | -- | ≥2000 MHz·km | ≥4700 MHz·km | |
| 10G Ethernet Link Length (m) | 850nm | -- | -- | ≤300m | ≤550m | |
| Min. Bending Radius | 10mm | 7.5mm | 30mm | 30mm |
Technical Parameters
| Fiber Count | Cable Size (mm) | Cable Weight (Ref kg/km) | Tensile Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
|---|---|---|---|---|---|
| 1 | (2.0±0.1)x(3.0±0.1) | 8 | 40 / 80 | 500 / 1000 | 15 / 30 |
| 2 | (2.0±0.1)x(3.0±0.1) | 8.5 |
